Compact Design

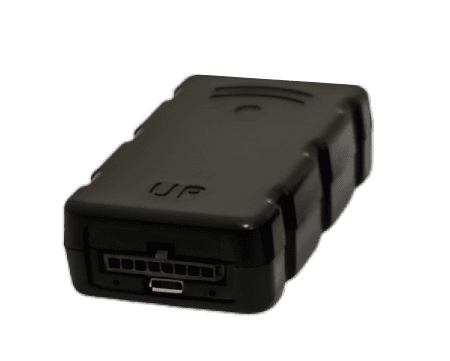

Spider IoT

Power and robustness in a compact design

The most compact device in our line with LTE Cat 1, WiFi, native CANBUS and 196 configurable rules. Cost-effective and versatile for fleets that demand efficiency.

Request quote Download Datasheet
Spider IoT
Features

Why choose Spider IoT?

Diseño Compacto

El más pequeño de la línea: 80x45x22mm. Ideal para instalaciones discretas en cualquier vehículo.

WiFi + Starlink

Conectividad WiFi 2.4GHz para áreas remotas o con señal celular débil, compatible con Starlink.

CANBUS Nativo

Lectura directa de ECU con protocolos OBDII, J1939, EBS e IESCAN integrados.

196 Reglas

Motor de eventos con 196 reglas configurables para automatización avanzada.

LTE Cat 1 + GSM

Conectividad celular avanzada con fallback a GSM para cobertura total.

Multi-GNSS

GPS, GLONASS, BeiDou, Galileo y QZSS para posicionamiento preciso global.

Bluetooth BLE

Compatible con iBeacon, Eddystone, sensores Escort y Moko Smart.

Bajo Consumo

Modo sleep < 2mA con batería de respaldo Li-Ion 500mAh integrada.

Advanced Modules

Exclusive Features

TRIP Module

Trip Analysis

Drive Score, fuel consumption, histograms and detailed metrics per trip.

Drive ScoreConsumptionRPMSpeed
HM Module + Black Box

Maneuver Detection

Triaxial accelerometer with automatic calibration. Detects impacts, braking and maneuvers.

ImpactsBrakingTurnsBlack Box
Specifications

Technical Specifications

Connectivity

Módulo Celular

Quectel EG915U-LA (LTE Cat 1 + GSM/GPRS/EDGE)

Bandas LTE-FDD

B2/B3/B4/B5/B7/B8/B28/B66

Bandas GSM

850/900/1800/1900 MHz

Módulo GPS

Quectel LC86G (GPS, GLONASS, BDS, Galileo, QZSS)

WiFi

2.4 GHz (802.11b Rx)

Bluetooth

BLE (iBeacon, Eddystone, Escort, Moko Smart)

Hardware

Procesador

ESP32 / 32 bits

Alimentación

8 a 38 Vcc

Batería Respaldo

Li-Ion 3.7V 500mAh con BPM

Consumo operación

~60mA @12V / ~48mA @24V

Consumo sleep

< 2mA @12V

Dimensiones

80 x 45 x 22 mm

Peso

70 g

Sensors

Acelerómetro

Triaxial, 8G

CAN Bus

OBDII, J1939, EBS, IESCAN

1-Wire

1 puerto (DS18B20, iButton DS1990)

RF 433MHz

Receptor opcional

I/O

Inputs and Outputs

Inputs

  • 4 entradas digitales configurables
  • 3 entradas analógicas
  • 1 entrada de ignición dedicada
  • 1 puerto 1-Wire (temperatura, iButton)
  • Puerto CAN Bus (CAN H / CAN L)

Outputs and Functions

  • 3 salidas digitales
  • 1 SIM (sin Dual SIM)
  • Antenas GPS y celular integradas
  • WiFi 2.4GHz + Bluetooth BLE
  • RF 433MHz opcional
Video

Meet Spider IoT

Watch in detail the features and functionalities of the most compact device in our line.

Frequently Asked Questions about Spider IoT

Everything you need to know about our compact tracker with CAN Bus

The Spider IoT is more compact (80x45x22mm vs 80x65x30mm) and offers the best price-performance ratio. The Smart IoT adds Dual SIM, a larger battery (1300mAh vs 500mAh) and more digital inputs. Both share WiFi, BLE, native CAN Bus and the 196 configurable rules.
Yes, the Spider IoT is fully compatible with Traccar and over 15 tracking platforms. It supports standard protocols like Wialon IPS, ensuring quick integration with any tracking server.
Yes, the Spider IoT includes native CAN Bus with support for OBDII, J1939, EBS and IESCAN. It reads vehicle data such as RPM, speed, fuel level, engine temperature and error codes without external accessories.
Yes, the Spider IoT includes 2.4 GHz WiFi for data-free local configuration, FOTA firmware updates via WiFi, and as a positioning complement in areas without GPS signal like garages or warehouses.
Yes, the Spider IoT enables fuel monitoring via CAN Bus reading (tank level directly from the vehicle) or by connecting external fuel sensors through the analog input. Ideal for detecting fuel theft and optimizing operating costs.
The Spider IoT features 4 digital inputs, 2 analog inputs (0-30V), 2 digital outputs, a 1-Wire port for temperature sensors, and Bluetooth BLE for wireless sensors. Sufficient to cover most professional installations.
The Spider IoT is designed for internal vehicle installation. Its enclosure is robust and resistant, but it does not have IP65 certification. For installations exposed to the elements, we recommend the Zero IoT which does have IP65 certification.
