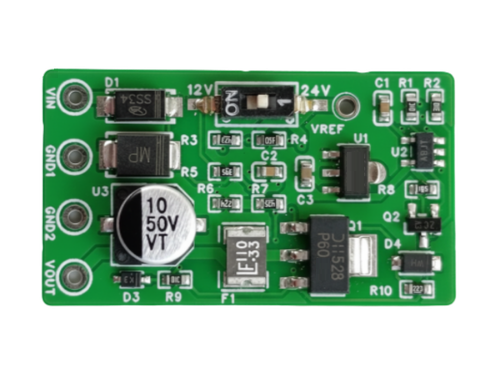

LVD Ultra Low-Power
Battery protector with 12V/24V selector
The LVD Ultra Low-Power is a battery protector designed for vehicle telematics equipment. Includes selector for 12V or 24V systems (9-36V DC range). With standby consumption under 10µA, it's virtually imperceptible to the battery. Automatically disconnects load when voltage drops below safe threshold and reconnects with integrated hysteresis to prevent oscillations. Includes overvoltage, overcurrent and reverse polarity protection.
<10µA
Standby Consumption
12/24V
Selector
<5g
Weight
How does it work?
Smart battery protection cycle
Continuous Monitoring
The LVD continuously monitors battery voltage with only 10µA consumption
Protection Cut-off
When voltage drops to 11.8V, cuts tracker power to protect the battery
Auto Reconnect
When engine starts and voltage rises to 12.6V, automatically reconnects the tracker
Operation Thresholds
Integrated hysteresis for stable operation. Select the mode with the switch according to the vehicle system.
Features
Smart protection with minimal consumption
< 10µA Standby
Ultra-low consumption that doesn't affect vehicle battery
Integrated Hysteresis
Prevents oscillations at cut-off point for stable operation
Auto Reconnect
Reactivates when voltage exceeds reconnection threshold
Complete Protection
TVS overvoltage, resettable fuse and reverse polarity
Technical Specifications
Detailed technical specifications
Power range
9-36V DC
Cut-off voltage
~12V (12V) / ~23.5V (24V)
Reconnect voltage
~12.5V (12V) / ~24.5V (24V)
Hysteresis
Integrated
Max current
1A continuous
Standby consumption
< 10µA typical
Dimensions
~35 × 20 mm
Weight
< 5g
Operating temperature
-40°C to +85°C
Protections
TVS + resettable fuse + reverse polarity
Compatibility
Any GPS tracker up to 1A
Compatible with any GPS tracker on 12V and 24V
The LVD Ultra Low-Power works with any GPS tracking device consuming up to 1A. With 9-36V DC range, it installs on 12V vehicles (cars, motorcycles) and 24V (trucks, machinery), protecting the battery regardless of device brand or model.
Teltonika
Queclink
Concox
Meitrack
Ruptela
Navtelecom
CalAmp
Rinho IoT
Why use an LVD?
GPS trackers consume power constantly, even with the vehicle off. In vehicles parked for several days, this can drain the battery and prevent starting. The LVD protects the battery by cutting power before it discharges, avoiding costly emergency calls and battery damage.
Applications
Ideal for any vehicle with a GPS tracker installed
12V Vehicles
Cars, pickups and motorcycles that remain parked
24V Vehicles
Trucks, buses and heavy machinery
Mixed Fleets
Fleets with 12V and 24V vehicles
Protect your vehicle batteries
Avoid costly battery drains and emergency calls. The LVD Ultra Low-Power is the most efficient solution on the market.
